FOTRIC TK series

Gehen Sie zu Produktunterstützung >>

IR Resolution
384*288

Focus Mode
Focus Free & Manual Focus

Measurement Range

-20°C ~550°C

Thermal Sensitivity
40mk

SharpView Thermal Camera

TK7 banner.jpg

FOTRIC TK series Thermal Cameras

Your First Step to Professional Thermography

Accurate Temperature Measurement

FOTRIC TK7 (6).jpg
  • Manual Focus(exclusive to TK8), ensuring concise measurement at all distances.

TK8-manual focus.jpg
  • 40mk thermal sensitivity unveils subtle flaws - no damp spot escapes your sight.

49° wide-angle shot (exclusive to TK7), to always see the big picture. Help you infer the root of the thermal anomaly.

25° Standard Lens (1).jpg
25° Standard Lens (2).jpg

49° wide-angle Lens

25° Standard Lens

Superior Image Quality

384*288 thermal pixels, presenting your findings with unprecedented clarity.

FOTRIC TK7 (12).jpg

Under 10000 pixels

FOTRIC TK7 (10).jpg

Over 100000 pixels

384

288

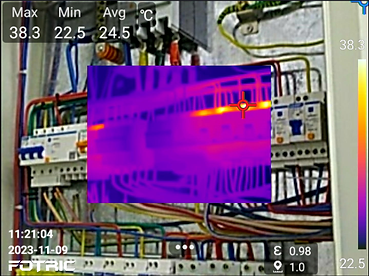

T-DEF® Fusion 0~100% adjustable transparency. Select the best way to present your finding.

Image Modes (3).png
Image Modes (4).png
Image Modes (2).png
Image Modes (1).png

Spezifikationen

Produkt Modell

FOTRIC TK7.png

Recommended Calibration Cycle

2 years

Warranty

2 years

Protection Class

IP54

Weight

0.8kg, Include battery

Battery

Rechargeable Li-ion, 3.6V, 5000mAh; ≥ 4 hours operation time

Palettes

8 Palettes,8 Inverted Palettes

Build-in Digital Camera (visible light)

8 MP Industrial Camera

Storage Memory

TF card, 32GB, expandable to 128GB

Accuracy

2 °C or 2% , whichever is greater (at 25 °C ambient temperature)

User-definable Markers

Spot: 6;Line: 3;Rectangle/Circle: 4

Temperature Measurement Range

-20 °C to 550°C

Focus Type

Focus Free

Field of View

49° *37°

Thermal Sensitivity(NETD)

40mk(0.04°C)@30° C

IR Resolution

384*288

Applications

FOTRIC TK7 (3)_edited.jpg
FOTRIC TK7 (13).jpg
FOTRIC TK7 (2)_edited.jpg
FOTRIC TK7 (8).jpg
