FOTRIC H7Acoustic Imaging Camera
Powerful Upgrade丨Long-range Detection
345
MEMS Digital Microphone
0.3~300m
Working Distance
NaviPdM
Smart Inspection Assistant
On-device Analysis
PD Types & Leakage Evaluation
NaviPdM® Venus Smart Inspection Assistant
FOTRIC H7 Acoustic Imaging Camera combined with NaviPdM® Venus enables a fully digitalized workflow from data acquisition to management, helping enterprises improve operational efficiency and safety.
One-time job by inspector
Simplified work;
Massive resource saving
Import or
create asset list
This is all
you have to do
Take images
Generate report
Software automation
Every iteration saves money and time.
Record asset name and image number
Copy images
to PC
Transcribe on-site annotations to PC
Check for errors and mismatches
Run diagnosis based on stan-dards
Combine data
and images
Application Scenarios
-

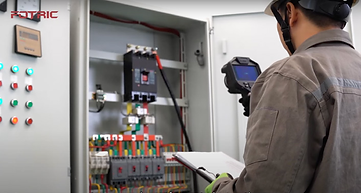

Equipment maintenance & overhaul: Record equipment status regularly, provide early warnings of potential faults, and reduce downtime.
-
Quality control: Capture key acoustic imaging data during production to ensure product consistency.
-
Project management: Supply detailed acoustic imaging records to support planning and execution during equipment relocation or new project implementation.
How to Create Assets Quickly?
Traditional Method
Method 1: Create asset with QR code
First time scan to register assets
Following inspection data collection
Method 2: Create assets manually
NaviPdM® Asset Creation
PD Diagnosis Report
Leak Evaluation Report
Why FOTRIC H7?
-
Spiral topology–optimized array with 345 MEMS digital microphones
-
Industrial digital camera: 13 MP resolution
-
Removable lithium batteries, with two packs, continuous runtime exceeds 6 hours, meeting full-day inspection needs
-
Dual LED light source design for superior illumination
-
Ultra-long listening range: operational distance from 0.3m to 300m
Unique Features
Smart Diagnosis
AI PD Defect Diagnosis
Smart Leak Cost Evaluation
Smart Inspection
Acoustic Image Delay (T-FFTD®)
Utilizes a multi-modal transient acoustic matrix to enhance microsecond-level acoustic event retention.
Boost signal retention and enhance inspection efficiency for intermittent sound sources.
Off On
Acoustic Image Focus
Combines adaptive dynamic noise reduction algorithms to achieve focused localization of sound sources.
Off On
Gray Scale Background
Under an industrial-grade gray-scale background, sound signals displays are more prominent.
Off On
NaviPdM® Venus
Innovative Acoustic Data Management System, enables full-process digitalization from data acquisition to management.
Partial Discharge · Automated Diagnosis
AI identifies surface discharge, floating discharge, corona discharge, and evaluates severity levels.
Fast Reporting · On-Device Generation
Directly generates Word or PDF reports on the device, with preview avaiable in the gallery.
Favorite Function
Highlight, locate images quickly, and manage with ease.
Gas Leak Applications
Partial Discharge Applications
Specifications
Product Model
FOTRIC H7 Acoustic Imaging Camera
Microphone Channels | 345 MEMS digital microphone |
Working Distanc | 0.3~300m(1~984ft） |
NaviPdM Venus | AI Inspection Assistant |
T-FFTD® | Capture instantaneous sound signals and make it stay longer in real-time acoustic display |
On-device Report Generation | Support generating word and PDF report |
Acoustic Image Focus | Masks the surrounding area and focuses only on a selected part of the acoustic image. |
Partial Discharge Diagnostics | Automatic diagnosis of discharge types such as surface, floating and tip (corona) discharges. |
Gray-scale Background | Displayed as a digital image in black and white grey scale. |
Battery | 7.4V, 3500m rechargeable lithium battery, field replaceable. |
Acoustic Image FOV | 66° × 52° |
Acoustic Sampling Rate | 200kHz |
Acoustic Refresh Rate | 25Hz |
Frequency Range | 2k~100kHz |
Detection Mode | Leak Mode: Displays the leakage level; PD Mode: Displays a PRPD diagram, adapted to different AC frequencies (50/60Hz). |
On-device Analysi | The device can directly analyse acoustic images. |
Analysis Software | AnalyzIR professional thermal and acoustic image analysis software |
Display Screen | 5", 1280*720 pixels, LCD touchscreen display with Gorilla Anti-Explosion screen. |
Image Mode | Single, Multi, Hologram |
Digital Camera | 13 megapixel, industrial-grade digital camera. |
Storage Card | SD card, hot-swappable, supports up to 1TB. |
Battery Operation Time | Continuous work ≥ 3h （depends on the environment and workload |
Languages | English, French, German, Italian, Japanese, Korean, Portuguese, Spanish, Thai, Traditional Chinese |
