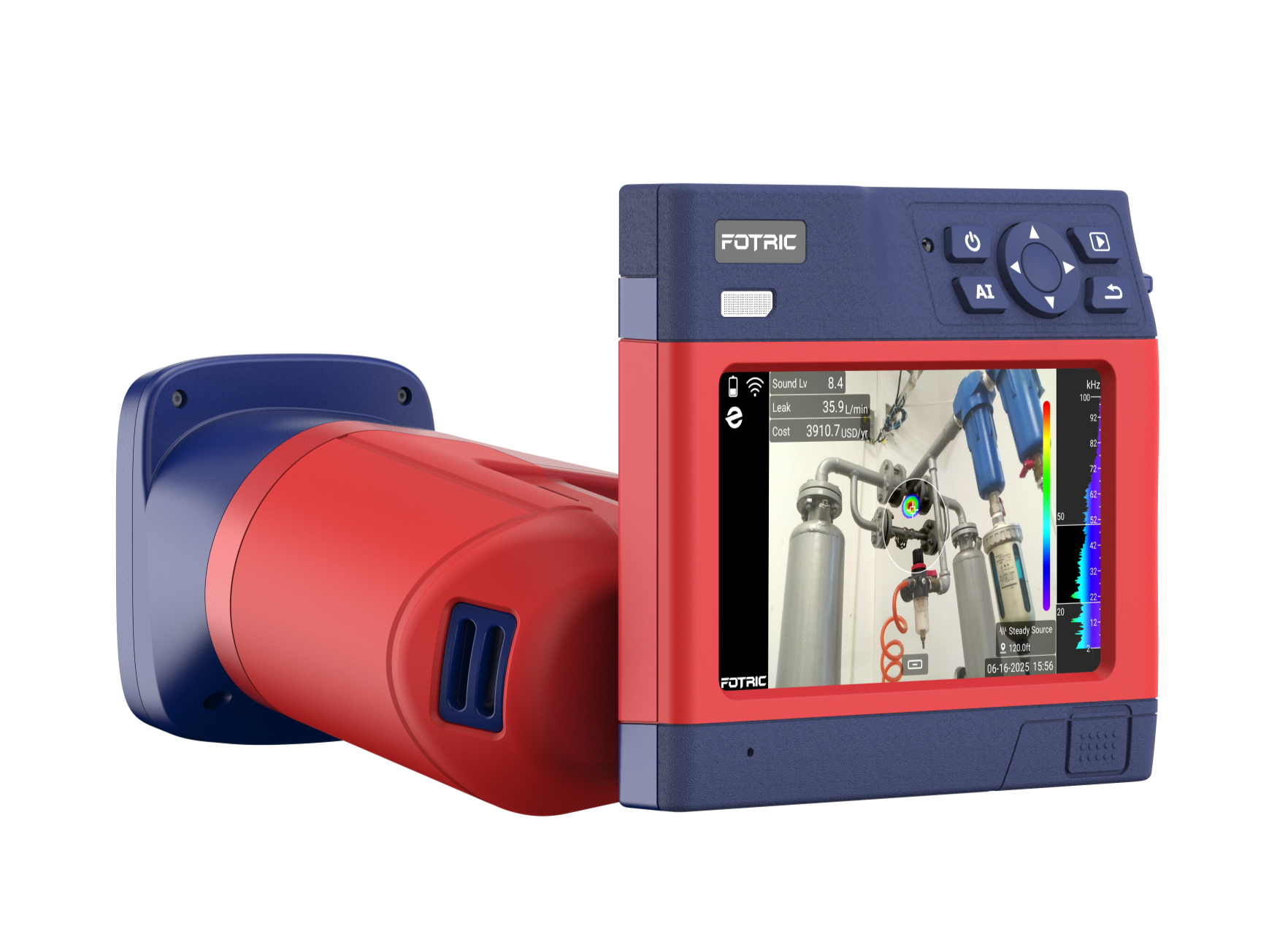

FOTRIC H6Flex Acoustic Imaging Camera
Redefine inspection agility with the FOTRIC H6Flex Acoustic Imaging Camera. Featuring a fully articulating module, the H-Flex adapts to your angle, making it easier to access tight, hard-to-reach spaces without strain. Its ergonomic design enhances user comfort and inspection efficiency, while advanced acoustic sensing delivers pinpoint leak and discharge detection. Built for flexibility, the A-Flex empowers you to work smarter in complex industrial environments.
Main Specifications
Product Catalog & Full Specifications
Analysis Software
| Model | FOTRIC H6Flex |
|---|---|
| Microphone channel | 162 MEMS digital microphones |
|
Acoustic Image Field of View (FOV) |
66° × 52° |
|
Acoustic Sampling Rate |
200kHz |
|
Acoustic Refresh Rate |
25Hz |
|
Working Distance |
0.3~200m(1~626ft） |
|
Detection Mode
|
Leakage mode: displays the leakage level on the device.
Partial discharge mode: display PRPD chart, suitable for different AC frequencies
(50/60Hz).
|
|
On-device Analysis |
The device is capable of directly analyzing acoustic images and Holographic acoustic videos
|
|
Display Screen |
5-inch, 1280*720 pixels, IPS LCD touch display with Gorilla Glass explosion-proof cover
|
|
Digital Camera
|
13 Megapixels, Industrial-Grade Digital Camera
|
|
NaviPdM
|
AI Inspection Assistant |
|
Articulate Microphone Array
|
180° Rotatable
|
|
Acoustic Image Delay (T-FFTD®)
|
Captures instantaneous sound signals, can stay longer in real-time acoustic image
|
|
Acoustic Image Focus
|
Masks surrounding areas, focuses only on the acoustic image of the focused area
|
|
On-device Report Generation
|
Support Word or PDF format
|
|
Partial Discharge Diagnosis
|
discharge, and corona discharge, as well as their severity
|
|
Gray Scale Background
|
Display digital camera images in grayscale
|
|
Favorites
|
Click the favorite button to save the favorite status to the acoustic images and holographic acoustic videos, highlighted in the gallery preview screen, and later filter by favorite status in the gallery
|
| Storage Card |
SD card, hot-swappable, maximum support 1TB |
| Battery Operating Time | Actual usage time depends on environmental and usage conditions |
|
Battery Type
|
3.6V, 9900mAh Rechargeable Lithium Battery, Field-Replaceable
|
|
Supported Languages
|
English, Traditional Chinese, Spanish, Korean, German, Portuguese, Italian, French, Thai
|
|
Standard Configuration
|
Acoustic imaging camera main unit, rechargeable lithium battery * 2, charging dock, power adapter, USB Type-C to USB cable, Micro HDMI to HDMI cable, 128G SD card, SD card reader, accessory bag (wrist strap, 2 wrist strap holders, 2 M4*8 screws, lanyard, hex wrench, SIM eject tool), document bag (packing list, quick start guide), portable soft bag, hard carrying case, outer packaging box
|
*Some features might be added or slightly altered according to the region and country
