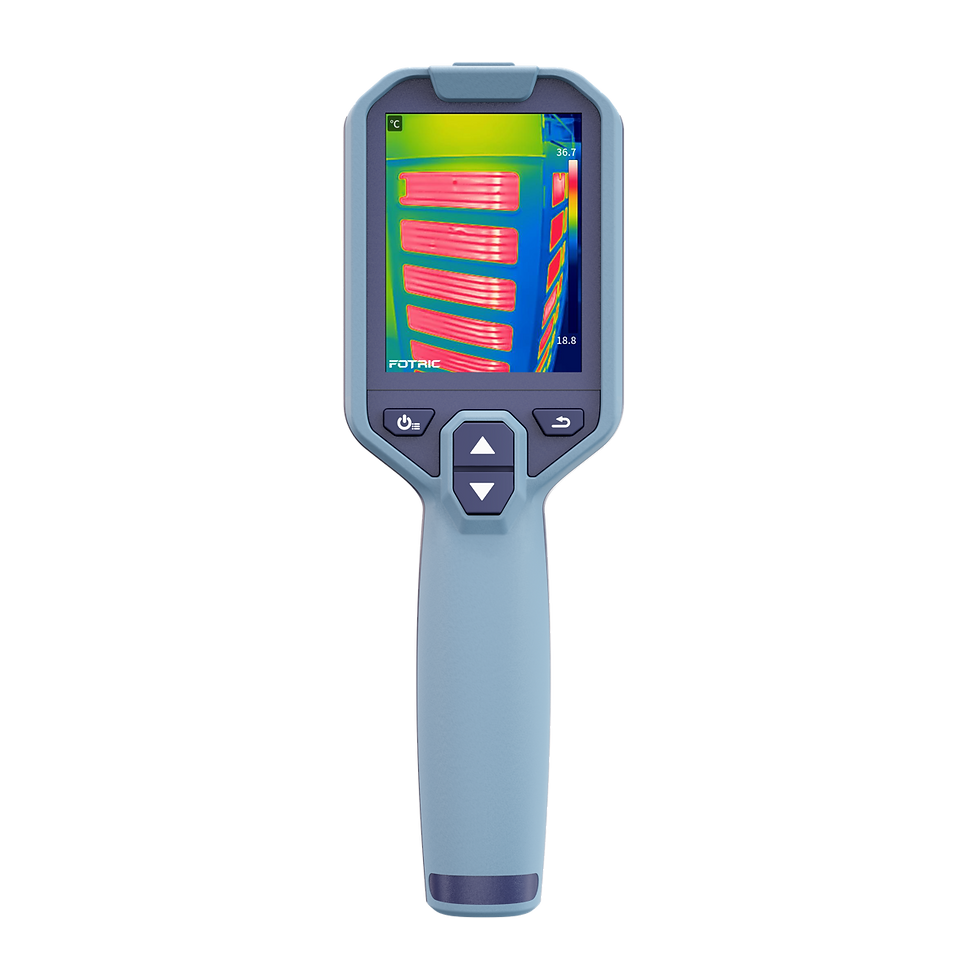

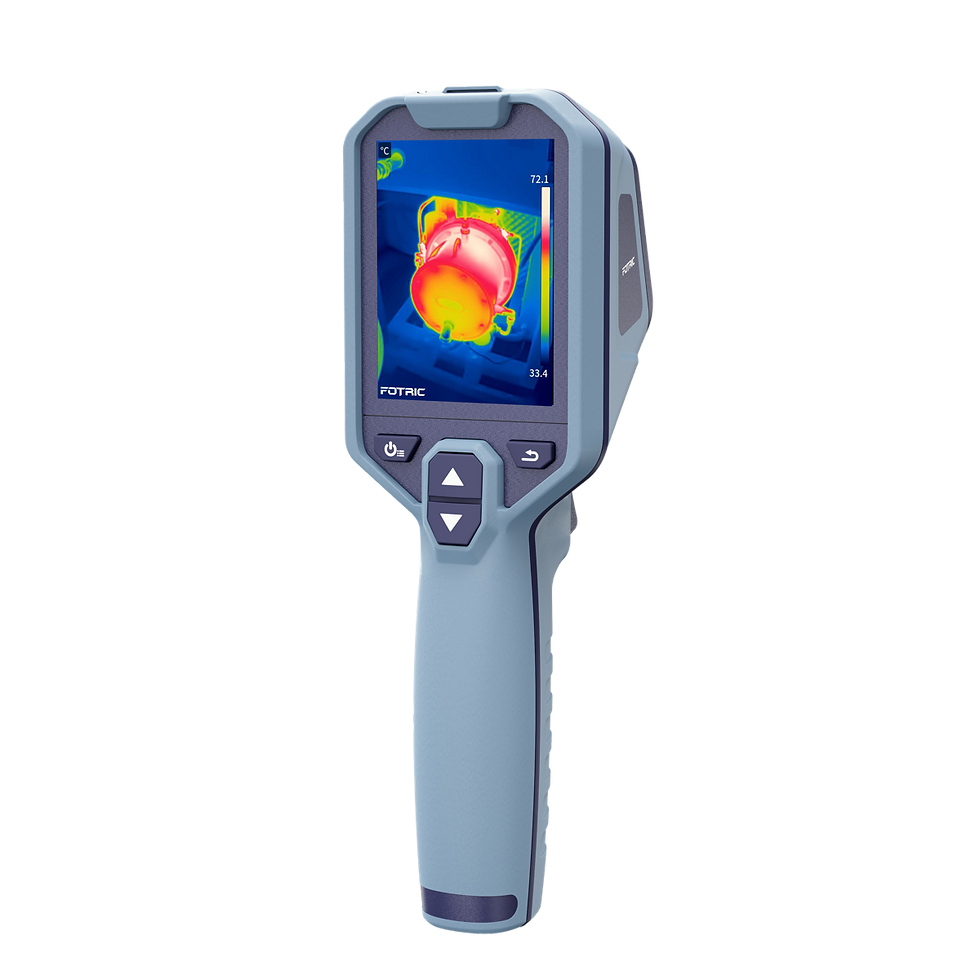

FOTRIC TF3 Compact Thermal Imaging Camera

1/3

FOTRIC TF3 Compact Thermal Imaging Camera

Portable and Easy to Use

320x240
Infrared Resolution

30mk

Thermal Sensitivity

-20~450℃
Temperature Range

460g

Weight

TF3

Go to Product Support >>

DOWNLOAD CATALOG PDF

240×320 IR Resolution, High Thermal Sensitivity

Clearer detail presentation makes it easy to quickly identify temperature distribution and abnormal areas, presenting more delicate and sharper image quality.

Thermal

T-DEF®

PIP

Visible light

Four Image Modes

Supports four display modes: infrared image, visible light temperature measurement (T-DEF®), Picture-in- Picture and visible light image to meet the observation, positioning and analysis needs in different scenarios.

Histogram Temperature Gradient Imaging (T-TWB®)

Optimize picture performance under large dynamic range, automatically tone the image based on temperature distribution, and help users see more gradients and details in complex environments.

TWB(Off)

TWB(On)

Focus-free Imaging

Point and shoot, intuitive design. Made for quick start and avoid temperature measurement deviations caused by inaccurate focus.

Compact and Lightweight

The compact body weighs only 430g, making it easy to
carry and operate with one hand. Suitable for mobile, on-site inspections and long-term use.

Large FOV

38° × 50° wide FOV for wider coverage, ideal for rapid

inspection and short-range large-area measurement.

Thermal Imaging Principle

Thermal imaging cameras rely on passive imaging and are very safe to operate.

Thermal Radiation

Lens

Detector

Thermal Image

Thermal imaging camera is a "Temperature Camera"

Thermal imagers detect infrared energy emitted by objects and convert it into intuitive thermal images, making temperature differences visible at a glance. They quickly reveal overheating, poor connections, heat loss, and other hidden issues without physical contact.

Ideal for electrical inspection, equipment maintenance, building diagnostics, and home safety checks, thermal imagers provide full-scene temperature distribution, faster inspections, and reliable operation even in complete darkness.

Applications

Electrical equipment inspection

Electrical circuits overload
Loose or corroded electrical contacts
Insulation failure

Mechanical equipment inspection

Motors, pumps and fans inspection
Bearing wear and lubrication failure detection
Identify shaft misalignment

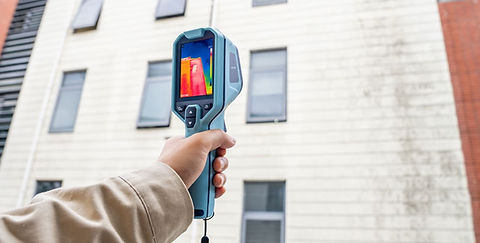

Building surface temperature inspection

External wall water seepage detection
Material insulation performance inspection
Exterior wall cavity assessment

Car fault diagnosis

Engine system temperature distribution
Brake inspection
AC outlet inspection

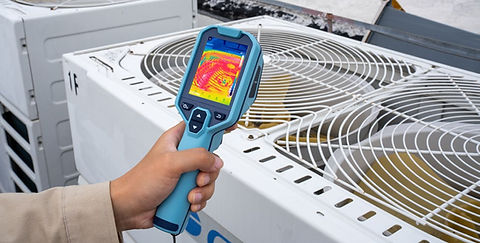

HVAC temperature diagnosis

Condenser duct blockage detection
Insulation condition inspection
Water leakage location detection

Floor heating diagnosis

Accurate location of leaks
Identification of pipe blockage
Identification of unevenly hot and cold pipes

Specifications

Product Model
