FOTRIC Ti3& Ti4 Sharpview Thermal Camera

Professional Thermal Imaging. Made More Accessible.

Ti4

Go to Product Support >>

up to 320*240
Infrared Resolution

30mK

Thermal Sensitivity

up to -20~650℃
Measurement Range

TurboFocus®

Focus System

DOWNLOAD CATALOG PDF

Robust and Versatile

TurboFocus® Intelligent Focus System

Combines thermal contrast AF, laser-assisted AF, continuous AF, touch AF, and manual focusto deliver fast, accurate, and quiet focusing. Seamlessly aligns thermal and digital images for precise analysis.

Versatile system ensures swift and precise focus

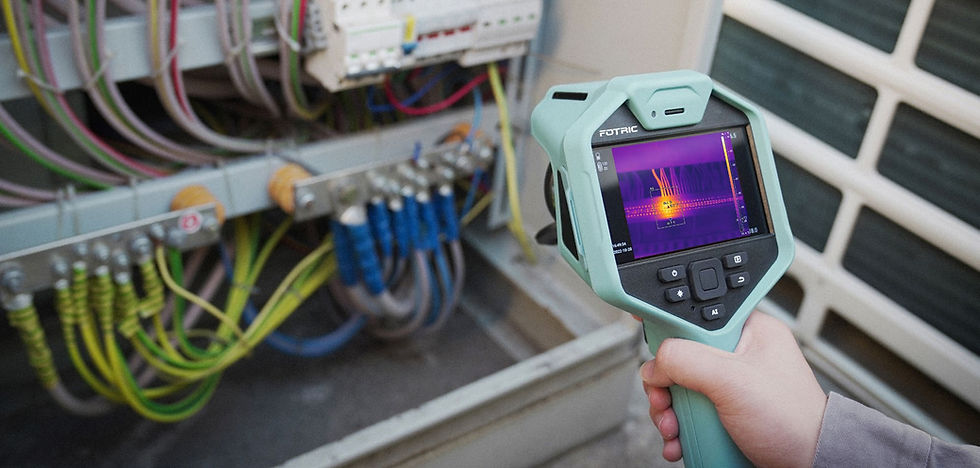

Robust Design

2-meter drop impact resistance makes a trulyenduring equipment;
With an IP54 protection rating, this device isbuilt for demanding industrial environments.

2-meter drop test

T-TWB®

Automatically adjusts the paletteribbon based on the pixel distribution across temperature ranges, offering a clearer view oftemperature distribution for more efficient inspections.

TWB OFF

TWB ON

IREdge®

Enhances object contours andedges to improve visibility and differentiation from thebackground.

IREdge OFF

IREdge ON

Powerful Analysis, Swift Decision-making

Laser-assisted Area/Length Measurement

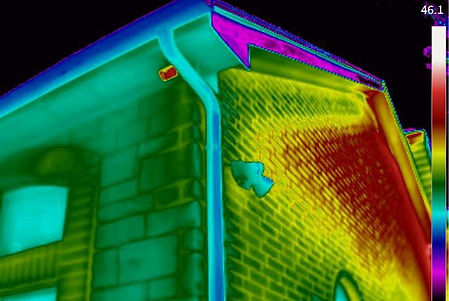

Equipped with a high-precision laser rangefinder,this system measures distances up to 50 meters with an accuracy of d*0.01% + 2mm. It automatically calculates areas and lengths within the thermalimage, ideal for building inspections and thermal loss assessments of large equipment.

On-device Analysis

Easily annotate images during inspections with the bookmark feature. Bookmarked images can be retrieved anytime for onboard analysis and streamlining your workflow.

Professional Analysis Software

AnalyzlR Venus software enables detailed data analysis,batch processing of inspection results, and instant report generation, enhancing the efficiency and professionalism of inspection workflows.

Specifications

Product Model

Ti4

Ti3

Infrared Resolution	320*240	160*120
IR Detector Type	Uncooled infrared focal plane detector	Uncooled infrared focal plane detector
Thermal Sensitivity（NETD)	<40mK@30℃	<50mK@30℃
Image Frame Rate	30Hz	30Hz
Field of View (FOV)	44° *33°	25° *19°
Focus Mode	TurboFocus® system for continuous, laser-assisted, thermal contrast AF, touch AF; Manual focus	TurboFocus® system for continuous, laser-assisted, thermal contrast AF, touch AF; Manual focus
IREdge	Contour detail enhancement	Contour detail enhancement
T-TWB®	Tempetrature visual representation normalization option	Tempetrature visual representation normalization option
Temperature Range	-20~120℃ (-4~248 ℉ )，0~650℃ (32~1202 ℉ )，Intelligent range	-20~120℃ (-4~248 ℉ )，0~650℃ (32~1202 ℉ )，Intelligent range
Measurement Accuracy	+ 2°C (3.6 °F ) or I 2%, whichever is greater (ambient temperatureat 15~35° C(59~95 °F), target object temperature >0° C, calibration at 1 meter)	+ 2°C (3.6 °F ) or I 2%, whichever is greater (ambient temperatureat 15~35° C(59~95 °F), target object temperature >0° C, calibration at 1 meter)
On-device Analysis	Support	Support
PC Software	AnalyzIR®	AnalyzIR®
Display Screen	5 inch touch screen (1280 x 720)	5 inch touch screen (1280 x 720)
Image Mode	Thermal image, Digital Camera, Picture in Picture and High sensitivity mode(only active when the lens is identified as a gas detection lens)	Thermal image, Digital Camera, Picture in Picture and High sensitivity mode(only active when the lens is identified as a gas detection lens)
Palettes	10	10
Digital Camera	8MP industrial grade camera	8MP industrial grade camera
Storage Card	Micro SD card, 64G, expandable up to 1TB	Micro SD card, 64G, expandable up to 1TB
LED Flash Lamp	Support torch illumination and flash light mode	Support torch illumination and flash light mode
Battery	Rechargeable Li-ion, 7.4V, 3500mAh	Rechargeable Li-ion, 7.4V, 3500mAh
Battery Operating Time	≥ 4 hours per battery(depends on the environment and workload)	≥ 4 hours per battery(depends on the environment and workload)
Enclosure Rating	IP54(IEC 60529)	IP54(IEC 60529)
Drop	Engineered to withstand 2 meters (6.5 feet) drop with standard lens	Engineered to withstand 2 meters (6.5 feet) drop with standard lens
Weight	1.0kg (lens not included)	1.0kg (lens not included)
Warranty	1 years	1 years
