FOTRIC TK6Kit Thermal lmaging Camera
Real Sensor · Real Focus · For Real Professionals
384×288
True Thermal Resolution
Manual Focus
Lens
3.5-inch
HD display
17μm
Ceramic-packaged Detector
Real Sensor
-
A ceramic-packaged detector, professional benchmark for accuracy and detail
-
A true 384×288 infrared detector, ensuring durability, accuracy, and reliability in demanding industrial environments
-
A 17 µm pixel-pitch detector, that results in a stronger signal-to-noise ratio and sharper, highercontrast thermal images
Manual Focus
Focus Free
Real Focus
-
A hallmark of professional imagers, makes true professional imaging achievable for every technician
-
Enables users to achieve precise clarity across varying distances, ensuring accurate temperature readings
-
With a minimum imaging distance of 0.15m, it can even clearly reflect the temperature of a PCB
Real Professional
-
With an IFOV of 1.14 mrad, it's capable of capturing finer temperature differences and achieving more accurate imaging
-
5-megapixel industrial-grade digital camera; Images will remain clear even in report
-
3.5-inch IPS LED touchscreen display with Gorilla explosion-proof glass
Six Professional Edges

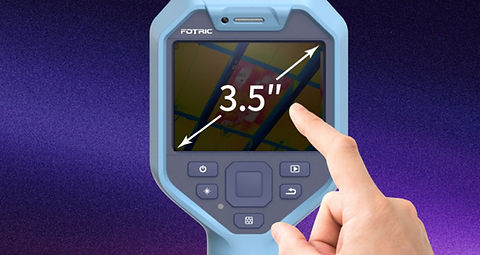

Professional Display Screen
3.5-inch, 640 x 480 pixels, IPS LCD touch display
T-DEF® Blend Mode
Exclusive T-DEF@ visible-light temperature measurement with infrared transparency adjustable from 0%-100%, automatically aligned with IR imaging.
Versatile Measurement Tools
Supports 20 measurement points, 10 measurement boxes, and 10 measurement lines, covering complex scenes far beyond comparable products.

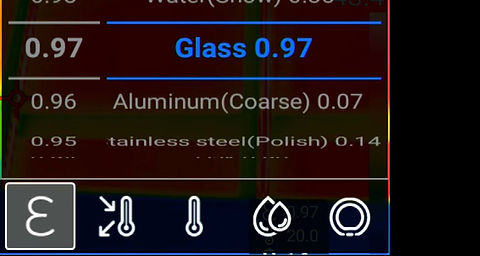

Measurement Parameter Compensation
Full parameter correction including emissivity, ambient temperature, reflected temperature, and IR window transmittance,ensuring research-grade measurement accuracy.
Ultra-close Imaging
Imaging from as close as 0.15 m, ideal for PCBs, electrical connection points, and precision components, breaking the conventional thermal camera application limits.
High Refresh Rate
30 Hz high-frame-rate real-time imaging, smooth and lag-free, capturing transient temperature rises and dynamic targets.
Applications
Durable hard carrying case &soft carrying bag
-
Industrial-grade shock-resistant design
-
Custom-molded internal structure to ensure safe transport of the main unit and accessories
-
Suitable for frequent travel/outdoor inspection scenarios
Lithium Batteries×2
-
Standard configuration includes two 3.6V/5000mAh batteries
-
Single battery operating time ≥ 4
-
Significantly improves all-day inspection capability
Wearable Tool Holster
-
Ailows the device to be securely attached to a belt or too! pouch
-
Enhances on-site mobility and reducesthe risk of accidental drops
Extended Warranty Service
-
Exclusive TK6Kit warranty: 1.5 years
-
Applies to the device main unit
Features
Lightweight Design
Integrates easily into a toolkit or can be carried on the belt—effortless portability.
Image Modes
Switch freely between infrared detection, blend mode, picture-in-picture overlay, and visible-light mode for more intuitive diagnostics.
Color Alarm
Instantly highlight over-temperature, under-temperature, and temperature range anomalies, so irregularities are obvious at a glance.
Palettes
Six professional color palettes flexibly highlight temperature differences, making hidden issues immediately visible.
Specifications
Product Model
FOTRIC TK6Kit Thermal lmaging Camera
.png)
Field of View (FOV) | 25° x 19° |
Spatial Resolution (IFOV) | 1.14 mrad |
Minimum Imaging Distance | 0.15m |
Focus Mode | Manual focus |
Complete Temperature Range | -20~550℃ (-4~1022 ℉ ) |
Accuracy | ± 2℃ (3.6 ℉ ) or ± 2 %, whichever is greater（ambient temperature at
15~35° C(59~95 ℉ ) , target object temperature >0° C, calibration at 1 meter) |
Image Frame Rate | 30Hz |
Measurement Spot | 20 |
Measurement Line | 10 |
Measurement Area | 10 |
Image Mode | Thermal image, Digital camera, Picture in Picture & T-DEF® blend |
T-DEF® | Support, thermal and visible light image blend, transparency 0% ~100% |
T-TWB® | Support histogram thermal color display |
Infrared Resolution | 384x 288 |
IR Detector Type | A ceramic-packaged detector, uncooled FPA infrared detector |
Thermal Sensitivity（NETD) | 40mk(0.04° C)@30° C(86 ℉ ) |
Detector Pitch | 17μm |
Spectral Range | 8-14μm |
PC Software | AnalyzIR® |
Display Screen | 3.5 inch Touch Screen |
Palettes | 6 Palettes |
Digital Camera | 5 MP industrial camera |
Storage Card | TF card, 32GB max capacity |
File Format | Radiometric thermal photo(JPEG.), digital camera photo |
Battery Type | Rechargeable Li-ion, 3.6V, 5000mAh |
Battery Operating Time | ≥ 4 hours |
Language | English |
