Why Refrigerant Leaks Are a Leading Cause of Automotive Air Conditioning System Failure
- 4 hours ago
- 3 min read
Automotive air conditioning systems operate under demanding conditions.
Because the refrigeration circuit runs continuously in a vibrating environment, components, pipes, and joints are constantly exposed to mechanical stress, pressure fluctuation, and repeated thermal cycling. Over time, these conditions increase the likelihood of refrigerant leakage.
In practice, refrigerant leaks are one of the most common causes of automotive air conditioning system failure.
When leakage occurs, cooling efficiency drops, system pressure changes, and long-term reliability is affected. This is why leak detection is not just a repair task—it is a critical part of preventive inspection and maintenance.
Common Leak Locations in Automotive Air Conditioning Systems
Understanding where leaks typically occur can make troubleshooting faster and more systematic.
1. Condenser
Junction of the condenser inlet and outlet pipes
Condenser coil
2. Evaporator
Joint of the evaporator inlet and outlet pipes
Evaporator coil
Joints at both ends of the expansion valve
3. Liquid Storage Drying Bottle
Fusible plug
Bell mouth of the pipe joint
4. Refrigerant Pipeline
High-pressure and low-pressure hoses
Joints of high-pressure and low-pressure hoses
5. Compressor
Compressor oil seal
Compressor suction and discharge valve
Front and rear cover seal
Joint with the refrigerant pipeline
These locations are especially vulnerable because they are frequently exposed to vibration, pressure fluctuation, and long-term operational stress.
Why Leak Inspection Is Necessary After Service or Disassembly
Every time the refrigeration system is overhauled, disassembled, or fitted with replacement parts, system airtightness should be verified before the system returns to operation.
Without proper leak inspection:
refrigerant may escape,
air conditioning performance may decline,
and repeat failures may occur shortly after maintenance.
For this reason, leak detection is an essential part of both fault diagnosis and post-maintenance quality control.
What Makes Acoustic Imaging Useful for Automotive HVAC Leak Detection
In leak inspection, speed and accuracy matter—especially when leak points are small or the working environment is noisy.
Compared with traditional leak detection methods, acoustic imaging helps inspectors identify leak sources faster and more intuitively, particularly in complex or vibration-heavy environments.
Acoustic imaging is becoming increasingly useful for automotive HVAC leak detection because it helps inspectors:
detect leak locations quickly,
narrow down the source more precisely,
and perform inspections more efficiently in real working conditions.

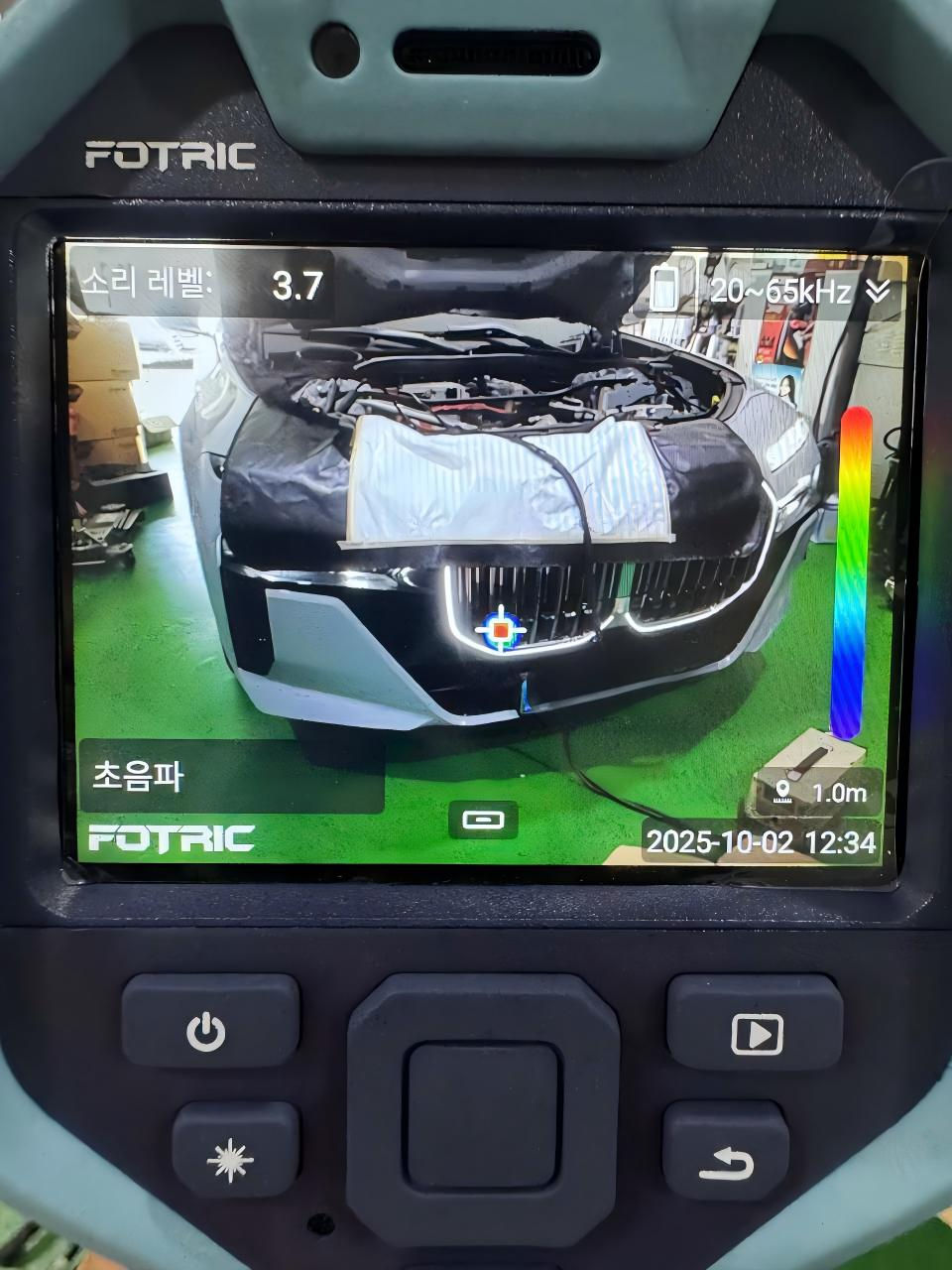

This is where acoustic imaging tools such as the FOTRIC TD2e Kit become especially valuable for real-world inspection work.
The FOTRIC TD2e Kit is designed to help inspectors locate leaks accurately, including in noisy environments, and supports reliable leak detection with ambient SPL-assisted analysis. Its lightweight and portable design also makes it practical for everyday inspection tasks.
Takeaway
In many cases, air conditioning system reliability is improved not by replacing components, but by adopting more effective inspection methods.
By shifting from reactive checks to more structured leak detection processes, maintenance teams can identify issues earlier, reduce repeat failures, and maintain more consistent system performance over time.
As inspection environments become more complex, particularly in noisy or vibration-heavy conditions, approaches that combine speed, precision, and repeatability are becoming increasingly important. Technologies such as acoustic imaging are increasingly being adopted as part of this shift, helping transform leak detection from a manual search into a more visual and data-driven process.
For professionals working on automotive air conditioning systems, the key is not only knowing where leaks occur, but also establishing a reliable way to detect them accurately and efficiently.
